Our Products

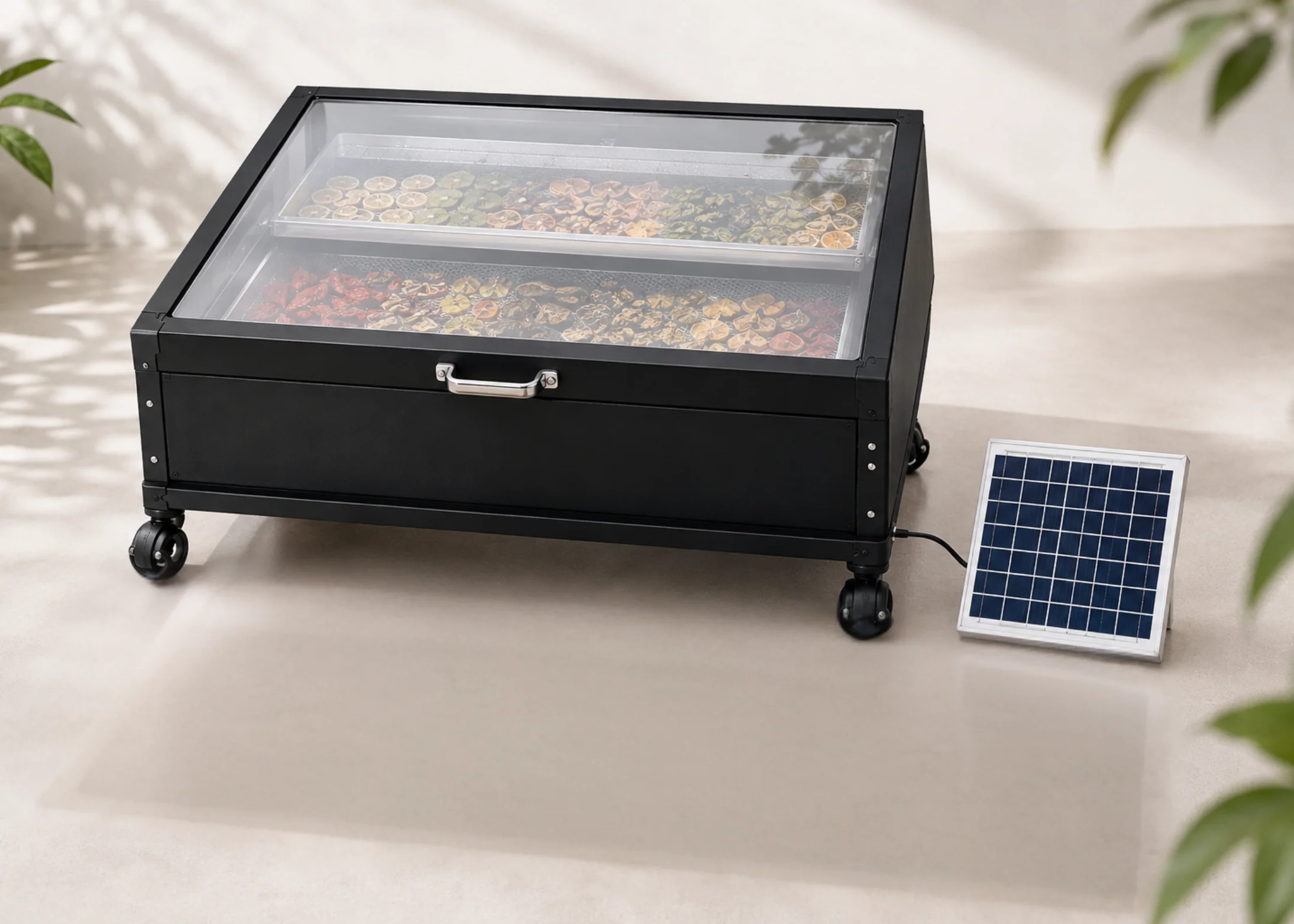

5 KG Solar Dryer
In Stock
| SPECIFICATIONS DETAILS | |
|---|---|
| Dryer Capacity | 5kg (Average Loading) |
| Tray Size | 16" × 31" × 1" Food Grade Aluminum Trays |
| Tray No. | 02 No's |
| Operating Temperature | Up to 60°C |
| No. of Fans | 1 no (2 Watt) |
| Height | 2 Feet (approx.) |
| Solar Panel | 1 no (3 Watt, 6 Volt) |
| Castor Wheel | 4 no's |
| Electric Heater | NA |
| Dimension (L × W × H) | 45" × 17" × 26" (960L × 520W × 300H mm) |
| Weight | 30 kg |
| Drying Area | 7.2 Sq. ft. |

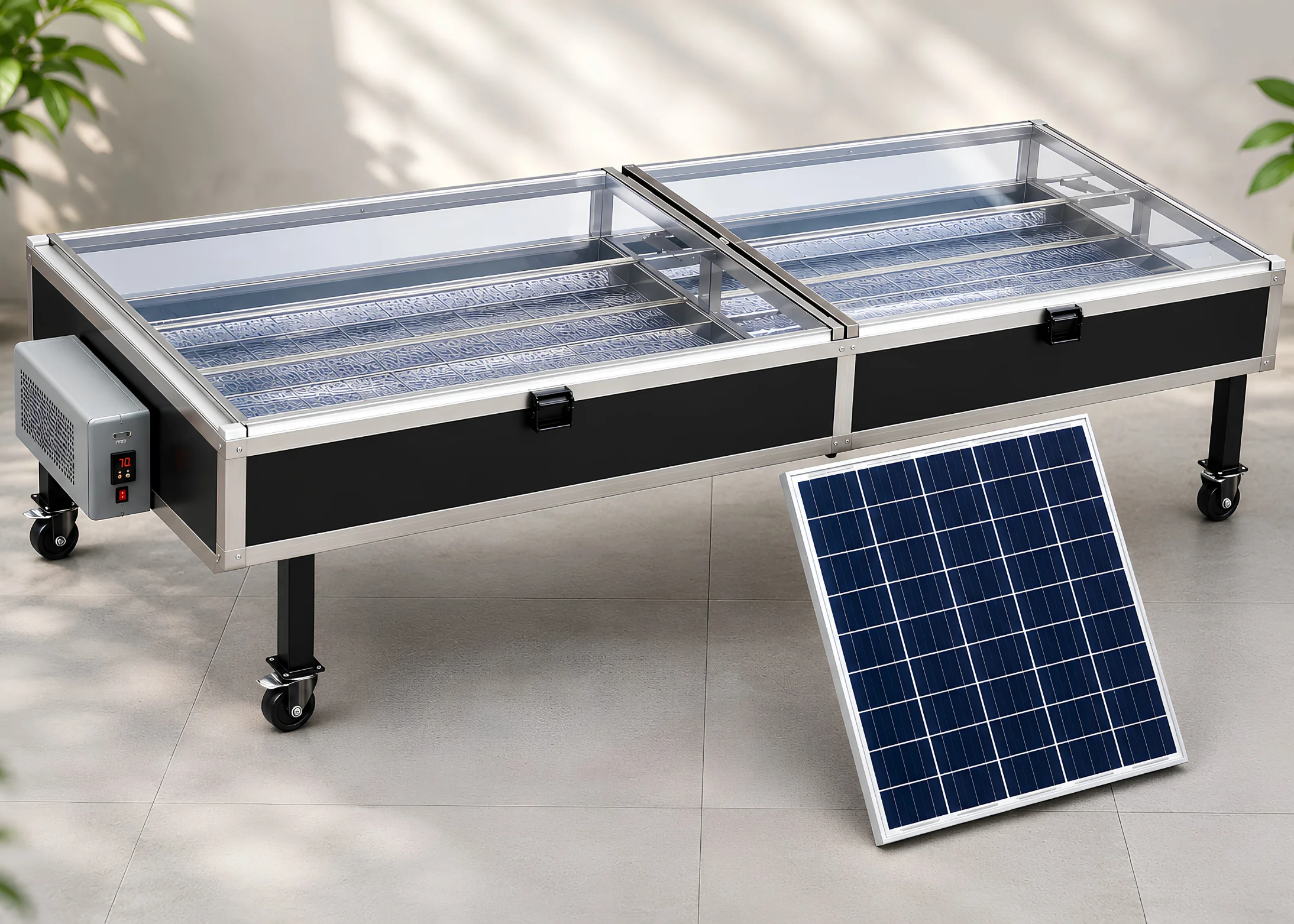

100KG Average Loading
| SPECIFICATIONS DETAILS | |
|---|---|
| Model | ITG – SFD100 |
| Drying Capacity | 100 Kg Per Batch |
| Tray Size (L × W × H) | 120 × 44 × 21 Inch |
| No. of Trays | 25 Nos (16 × 32 × 1 Inch) |
| Drying Area | 90 Sq. ft. |
| Overall Length | 120 Inch |
| Overall Width | 44 Inch |
| Overall Height | 21 Inch |
| Tray Material | Stainless Steel 304 Food Grade |
| Body Material | Galvanized Zinc Coated Metal |
| Cover Material | Double UV Polycarbonate Sheet (Top Cover Transparent) |
| Insulation | PUF Insulated |
| Fans | 4 Nos (3 Watt Each) (12V DC Brushless) |
| Solar Panel | 4 Nos 3 Watt (12 Watt Total) |
| Electric Heater | 2400 Watt |
| Heater Voltage | 230 V AC, 50 Hz |
| Controller | Digital Temperature Controller |
| Temperature Range | 30°C to 70°C (Adjustable) |
| Drying Time | 4 – 6 Hours (Depends on Product) |
| Power Supply | Solar + Electric (AC 230V, 50 Hz / DC 12V) |
| Mobility | With Wheels for Easy Movement |
